60A MPPT Solar Regulator Charge Controller 12V 24V Autoswitch Solar Panel

60A MPPT Solar Regulator Charge Controller 12V 24V Autoswitch Solar Panel

Product Code : AS-60
$129.99
Brand: Royal Power
Quantity :

     Share with Facebook      Share with tweeter      Share with Linkedin      submit to reddit    Yahoo Bookmarks

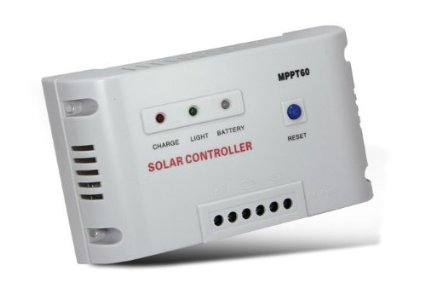

MPPT60 60A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load.



Specifications

  • Model

    AS-60





    Rated Voltage

    12/24V   Automatic voltage recognition

    Max Load current

    60A





    Input voltage range

    12V-20V/24V-40V

    Length≤1m

     Charge loop drop

    <0.25V

    Length≤1m

    Discharge loop drop

    <0.05V

    Over voltage protection

    12V-20V/24V-40V

    Full charge cut

    13.7V(Default value, can be otherwise set)

    Low voltage cut

    10.5V(Default value, can be otherwise set)

    Temperature compensation

    -3mv/°C/cell

    No load loss

    ≤45mA

    Max wire area

    12mm2

    Ambient temperature

    -25°C——+55°C







Free Accessory Kit (Solar System Diagram)

Applications

  • MPPT60 60A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load. It is a very important assembly in the photovoltaic system. It is different from other solar controllers that it is add the comprehensive protection function makes the whole solar photovoltaic system operate efficiently and safely.
  • MPPT60 60A solar controller can adjust automatically the working voltage of solar panels, which can make solar panels work co sistently in the maximum power point of the V-A characteristic curve in a whole day. Compared with common solar controllers, it is equipped with temperature compensation function, can make the work efficiency of photovoltaic modules increased by 30 Percent, and can observably prolong the life of the storage battery.
  • Main features: Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10 - 30 Percent Can charge and discharge at the same time Always keep the battery in full status Battery over-charging /over-discharging protection Prevent the battery from reverse charging to solar panels during nights
  • Reverse polarity protection for battery Reverse polarity protection for solar panels When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. Thunder protection The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.
